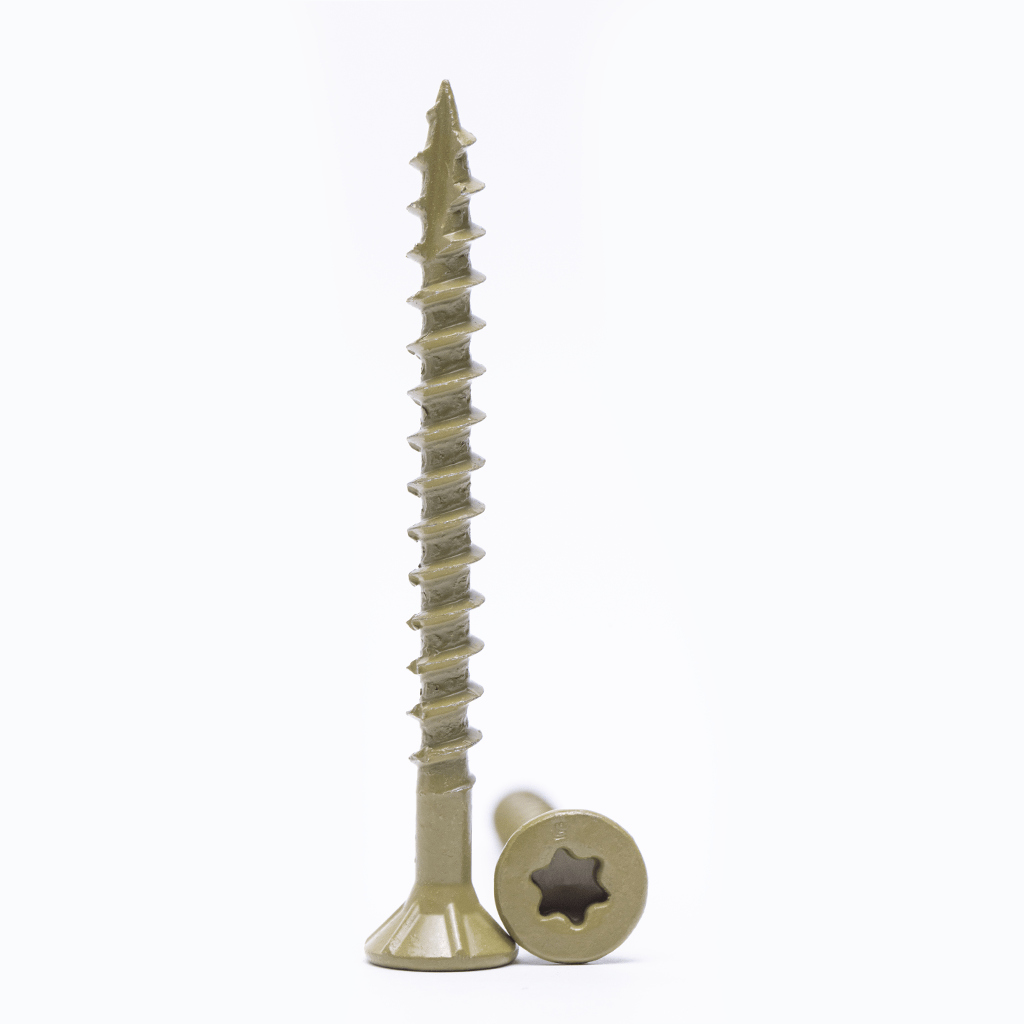

Type 17 Deck Screws

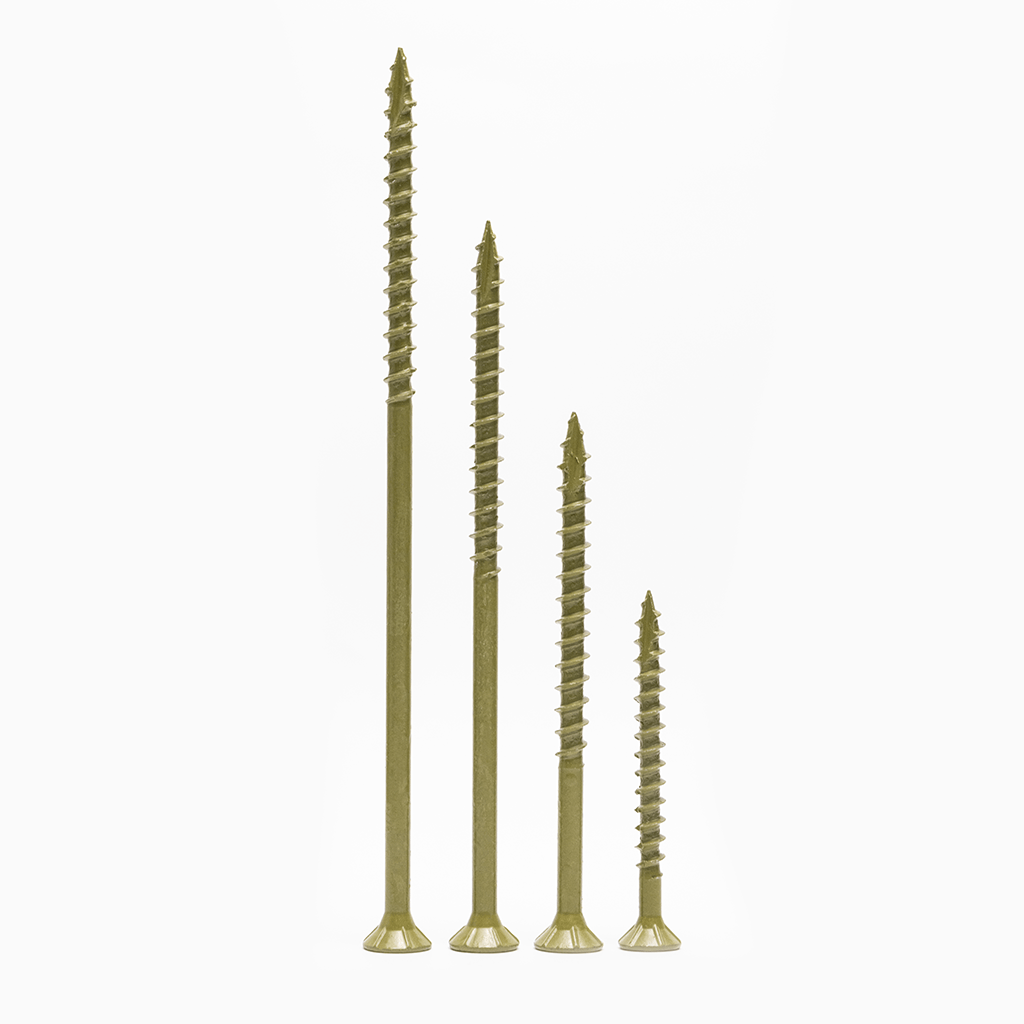

Uses range from conventional decking to roofing furring strip applications. Eight lengths offered. Type 17 point, olive green color and easy bucket storage. High quality, long-lasting salt spray coating ensures corrosion resistance and a long-life for your deck screw application.

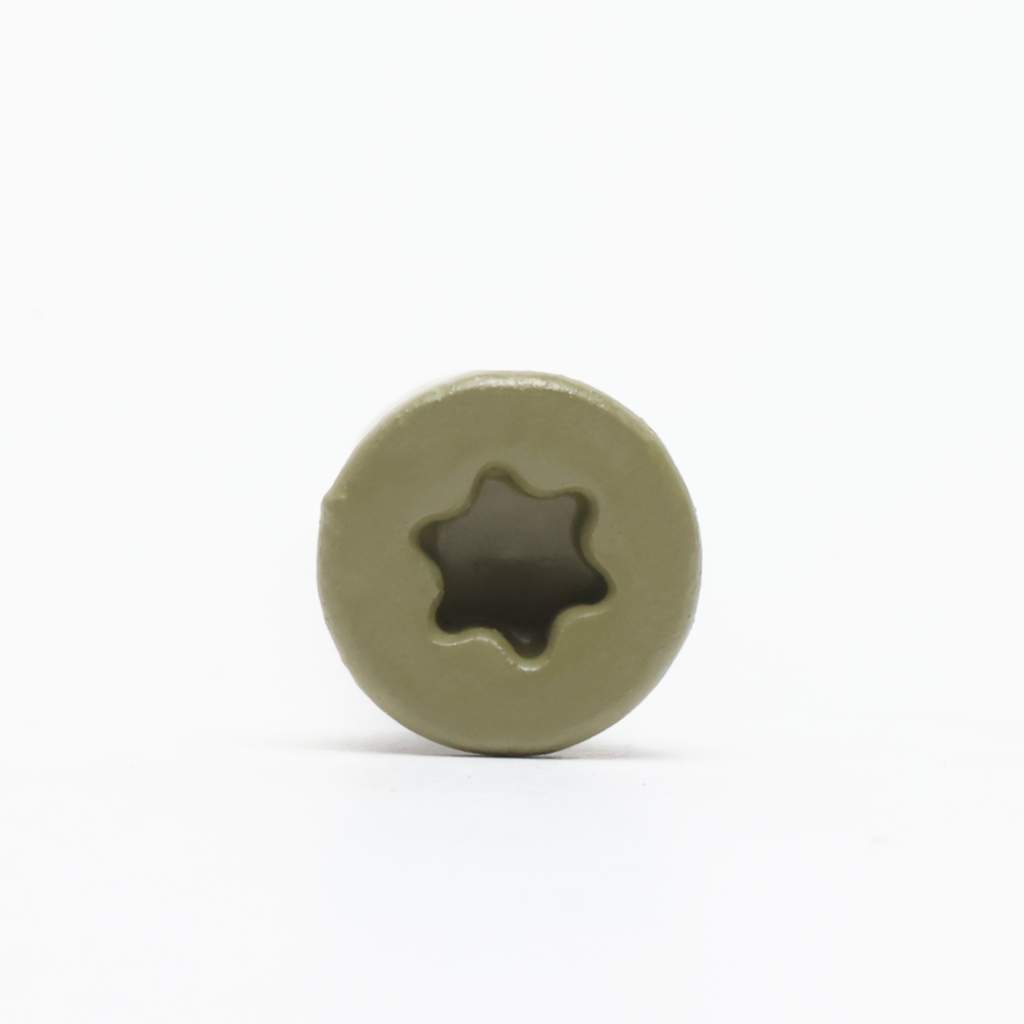

• T-25 Star Drive

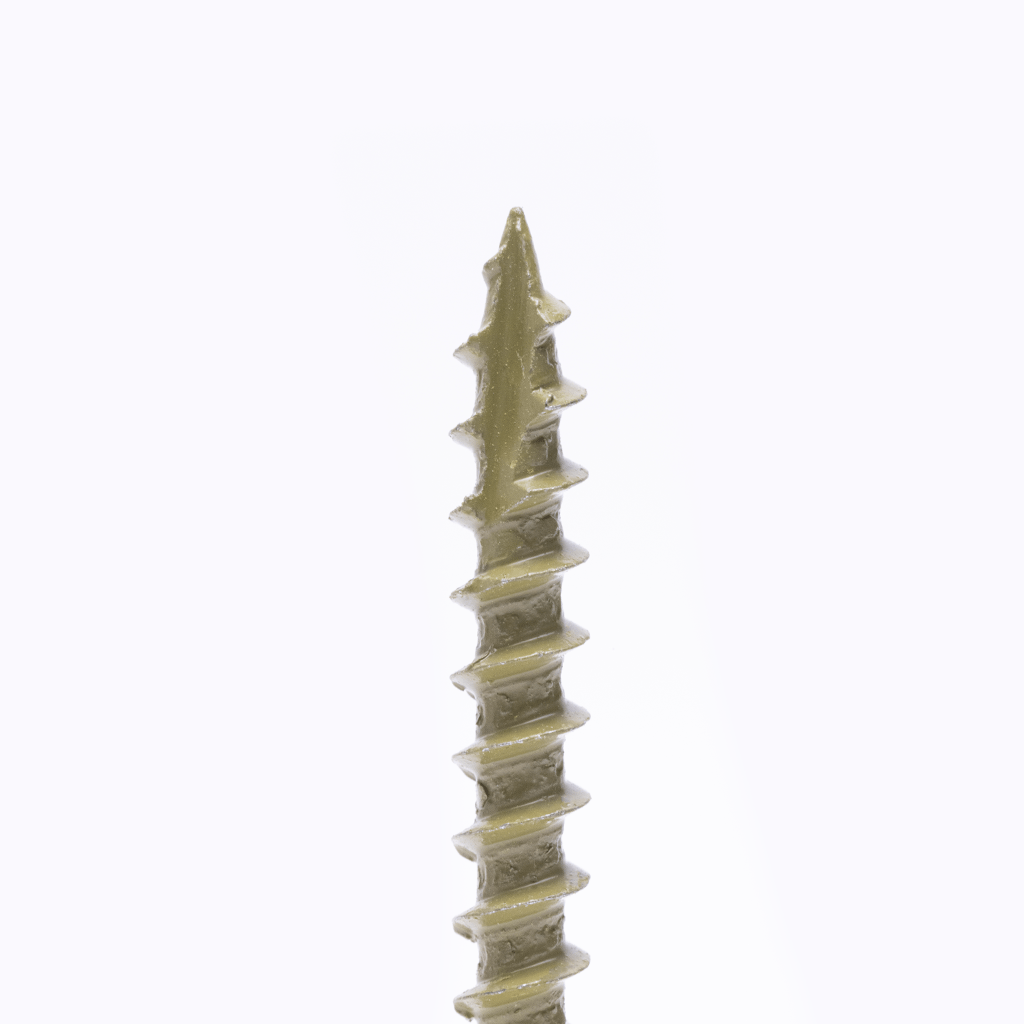

• T-17 Drill Point

• ACQ Approved

• 1500 Hour Salt Spray Coating

• Easy Bucket Storage

• Driver Bits Available, Sold Separately

• Available in Boxes or Buckets

PART #	DESCRIPTION	HEAD STYLE	Drill PT	PCS/BOX	LBS/BOX
8158DS25LB	#8 x 1 - 5/8"	T-25 Star Drive	T-17	4,380	25
92DS25LB	#9 x 2"	T-25 Star Drive	T-17	3,220	25
9212DS25LB	#9 x 2 - 1/2"	T-25 Star Drive	T-17	2,600	25
103DS25LB	#10 x 3"	T-25 Star Drive	T-17	1,720	25
10312DS25LB	#10 x 3 - 1/2"	T-25 Star Drive	T-17	1,540	25
104DS25LB	#10 x 4"	T-25 Star Drive	T-17	1,350	25
105DS25LB	#10 x 5"	T-25 Star Drive	T-17	1,100	25
126DS25LB	#12 x 6"	T-25 Star Drive	T-17	790	25

PART #	DESCRIPTION	HEAD STYLE	Drill PT	PCS/BOX	LBS/BOX
92DS5LB	#9 x 2""	T-25 Star Drive	T-17	665	10
9212DS5LB	#9 x 2 - 1/2"	T-25 Star Drive	T-17	530	10
103DS5LB	#10 x 3"	T-25 Star Drive	T-17	360	10
10312DS5LB	#10 x 3 - 1/2"	T-25 Star Drive	T-17	310	10
104DS5LB	#10 x 4"	T-25 Star Drive	T-17	260	10
105DS5LB	#10 x 5"	T-25 Star Drive	T-17	215	10
