Structual Screw - FrameGrip

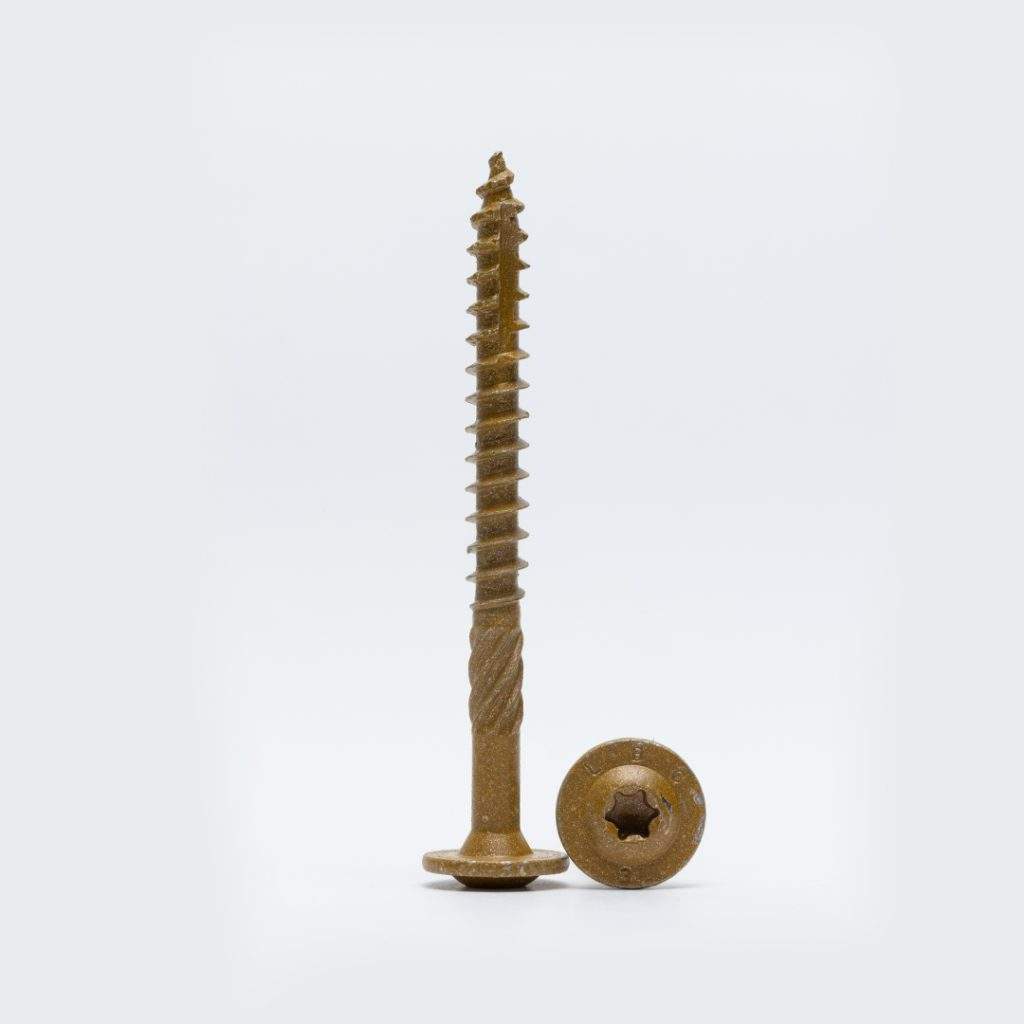

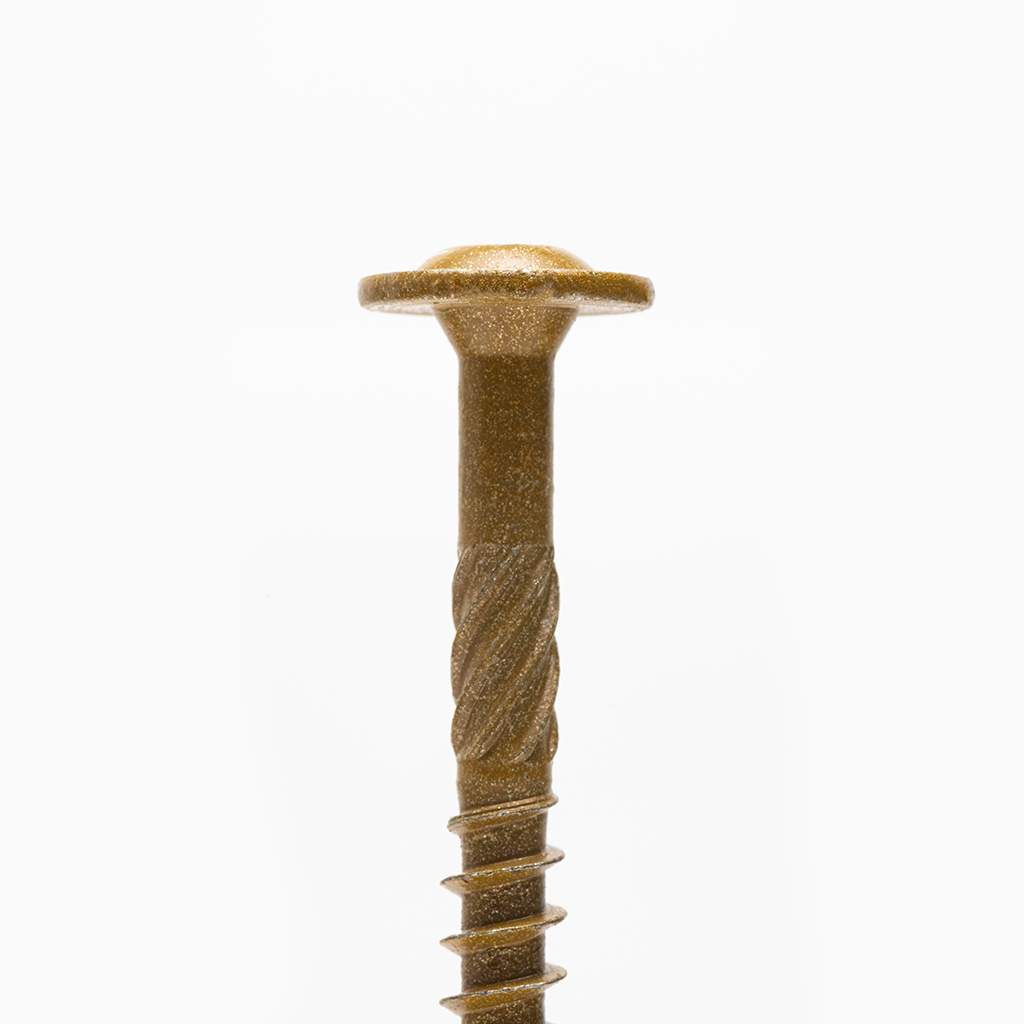

The FrameGrip™ structural screw from Levi’s Building Components® is an excellent choice for a lag screw alternative. FrameGrip™ structural screws require no pre-drilling and can be used in both indoor and outdoor structural applications. The T-17 Saw Thread allows for quick and easy drilling, while the U Thread creates added space to increase draw strength and reduce risk of wood splitting.

• Lag Screw Alternative

• U Threads

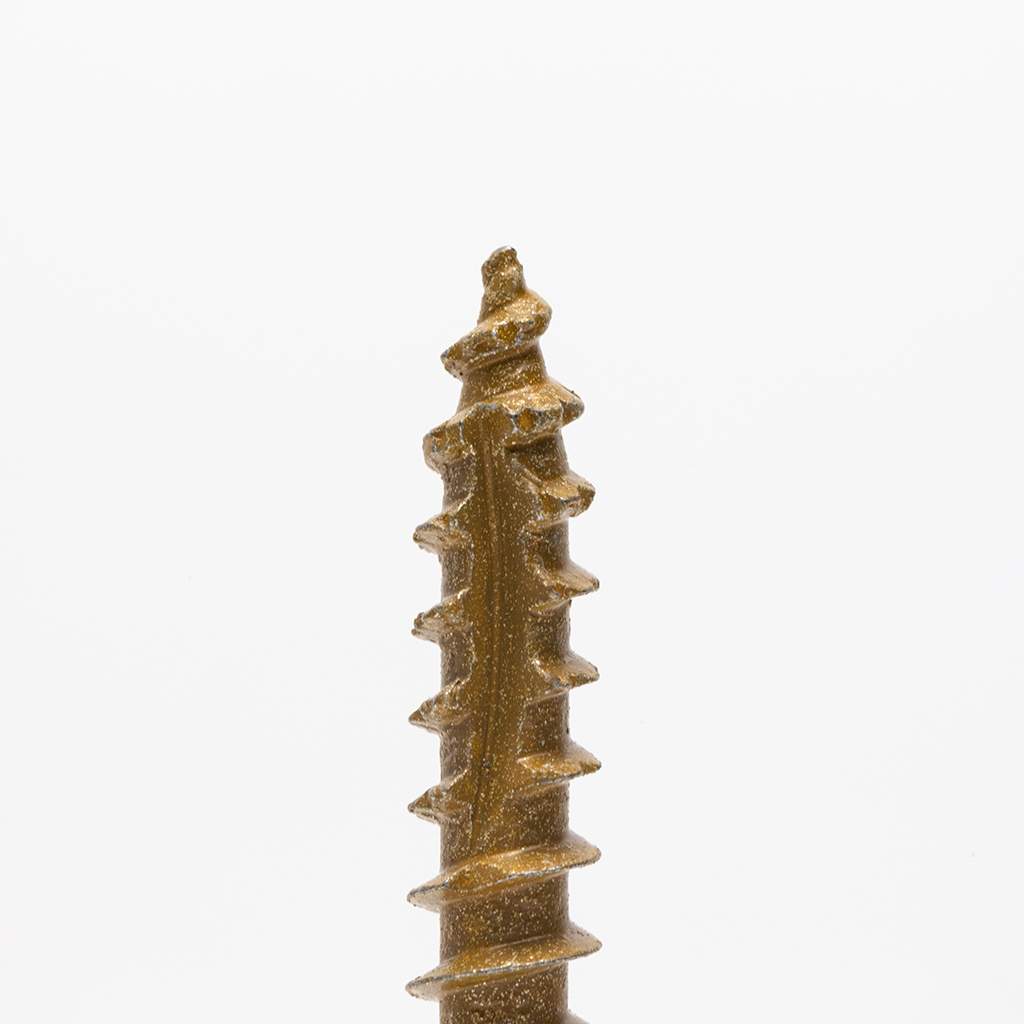

• Type 17 Point

• Saw Thread

• Compatible with Treated Lumber

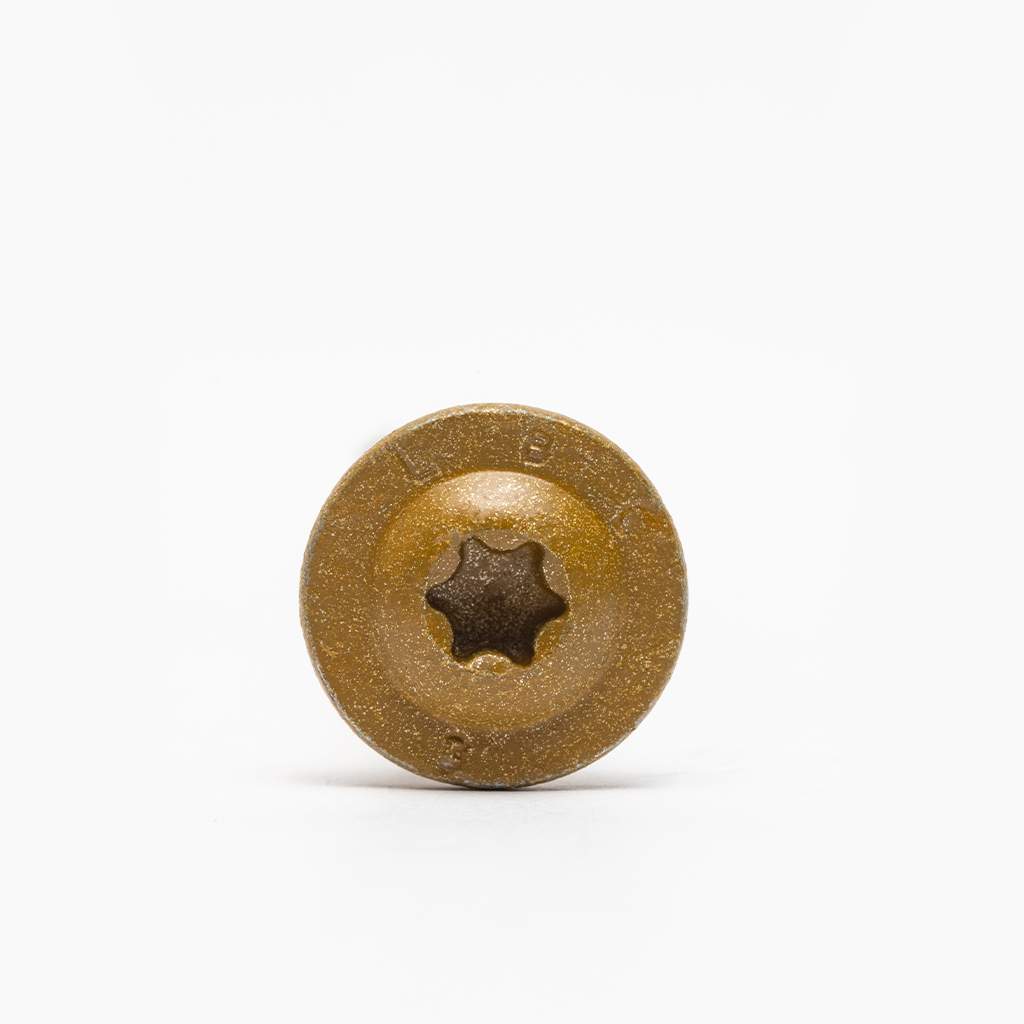

• T30 or T40 Star Drive

• Star Drive Bit Included

• ICC ESR 4504

PART #	DESCRIPTION	HEAD STYLE	Drill PT	PCS/BUCKET	LBS/BUCKET
5163FGBU	5/16" x 3"	T-30 Star Drive	T-17	500	17.7
5164FGBU	5/16" x 4"	T-30 Star Drive	T-17	500	21.7
5165FGBU	5/16" x 5"	T-30 Star Drive	T-17	500	26.8
5166FGBU	5/16" x 6"	T-30 Star Drive	T-17	250	16.0
388FGBU	5/16" x 8"	T-40 Star Drive	T-17	150	15.9

PART #	DESCRIPTION	HEAD STYLE	Drill PT	PCS/CARTON	LBS/CARTON
5163FGBX	5/16" x 3"	T-30 Star Drive	T-17	50	1.8
5164FGBX	5/16" x 4"	T-30 Star Drive	T-17	50	2.2
5165FGBX	5/16" x 5"	T-30 Star Drive	T-17	50	2.7
5166FGBX	5/16" x 6"	T-30 Star Drive	T-17	50	3.1
388FGBX	5/16" x 8"	T-40 Star Drive	T-17	25	2.7
